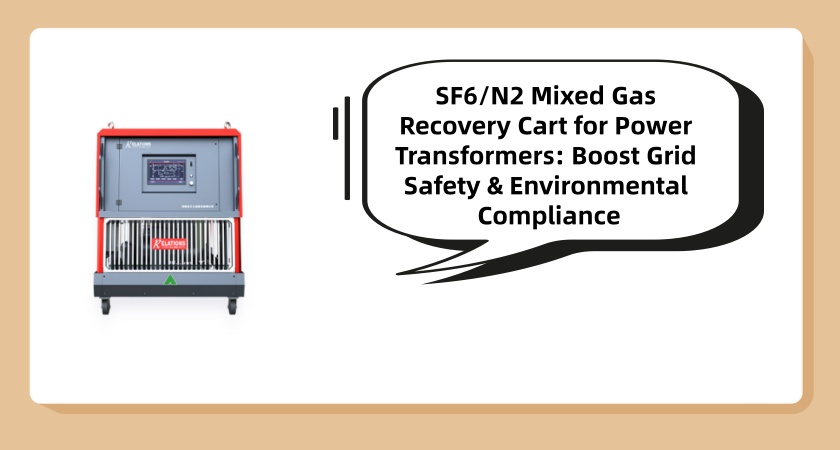

SF6/N2 Mixed Gas Recovery Cart for Power Transformers: Boost Grid Safety & Environmental Compliance

Power transformers are the backbone of modern electrical grids, and their reliable operation depends heavily on high-performance insulating gases. SF6 (sulfur hexafluoride) is widely used for its excellent insulation and arc-quenching properties, while N2 (nitrogen) is often mixed with SF6 to reduce costs and maintain stability. However, improper handling of SF6/N2 mixed gas—such as direct emission or inefficient recycling—poses severe environmental risks (SF6 is a potent greenhouse gas with a 100-year GWP of 23,500) and economic losses. This is where the SF6/N2 Mixed gas recovery cart for power transformers becomes indispensable.

Why SF6/N2 Mixed Gas Recovery Carts Are Critical for Power Transformers

Traditional approaches to managing SF6/N2 gas in transformers—like on-site venting or manual transfer—fall short in three key areas:

1. Environmental Harm: Uncontrolled SF6 emissions violate global regulations (e.g., the Paris Agreement and EU F-Gas Regulation), exposing utilities to fines and reputational damage.

2. Economic Waste: SF6 is expensive; discarding mixed gas means repeated purchases of new gas, increasing operational costs.

3. Equipment Risk: Moisture or impurities in unrecovered gas can corrode transformer components, shortening its lifespan and causing unplanned outages.

The SF6/N2 Mixed gas recovery cart for power transformers addresses these issues by enabling closed-loop gas management, ensuring no gas is wasted or released, and preserving transformer performance.

Core Functions & Technical Advantages of SF6/N2 Recovery Carts

A high-quality SF6/N2 recovery cart is designed to handle the unique needs of power transformer maintenance, with key features that set it apart:

1. Comprehensive Gas Processing

The cart performs four critical tasks in one system:

• Recovery: Extracts SF6/N2 mixed gas from transformers at high speed (typically 50-100 kg/h) using vacuum pumps, even in low-temperature environments (-20°C to 40°C).

• Separation: Uses advanced membrane or adsorption technology to split SF6 and N2, achieving SF6 purity of up to 99.9%, which meets re-injection standards for transformers.

• Purification: Removes moisture (to <50 ppmv) and impurities (e.g., oil, dust) to prevent transformer insulation degradation.

• Storage: Includes high-pressure cylinders or tanks with safety valves, complying with pressure vessel standards (e.g., ASME BPVC or GB 150).

2. Smart & User-Friendly Design

Modern SF6/N2 recovery carts integrate digital features to simplify operation:

• Intelligent Control Panel: Real-time monitoring of gas pressure, temperature, and purity via a touchscreen, with automatic alerts for anomalies (e.g., high moisture levels).

• Mobility: Compact, wheeled design (with optional towing capability) allows easy movement between substations, eliminating the need for fixed recovery stations.

• Energy Efficiency: Variable-speed pumps reduce power consumption by 20-30% compared to conventional models, lowering long-term operational costs.

3. Safety Compliance

Safety is non-negotiable for electrical equipment. These carts include:

• Overpressure protection valves and flame arresters to prevent leaks or explosions.

• SF6 gas leak detectors (sensitivity: <1 ppmv) to ensure operator safety and environmental protection.

• Compliance with international standards (e.g., IEC 60480 for SF6 handling and IEEE C57.120 for transformer maintenance).

Environmental & Economic Benefits of Adopting SF6/N2 Recovery Carts

For power utilities, investing in an SF6/N2 Mixed gas recovery cart for power transformers delivers tangible returns:

Environmental Benefits

• Reduces SF6 emissions by up to 95%, helping utilities meet carbon reduction targets.

• Eliminates the need for hazardous waste disposal of contaminated gas, aligning with circular economy goals.

Economic Benefits

• Cuts gas procurement costs by 40-60% through recycling—one cart can recover enough SF6 to avoid purchasing 500+ kg of new gas annually (based on average transformer gas volume).

• Extends transformer lifespan by 5-10 years by maintaining clean, dry gas, reducing maintenance and replacement costs (which can exceed $100,000 per transformer).

Key Considerations When Selecting an SF6/N2 Recovery Cart

To maximize value, utilities should prioritize these factors when choosing a cart:

1. Processing Capacity: Match the cart’s recovery rate to the transformer’s gas volume (e.g., a 100 MVA transformer typically holds 200-300 kg of SF6/N2 gas).

2. Purity Requirements: Ensure the cart can achieve SF6 purity ≥99.5% (the minimum standard for reusing in transformers).

3. Mobility: Opt for a cart with rugged tires and a lightweight frame if it will be used across multiple substations.

4. After-Sales Support: Choose manufacturers that offer training, spare parts (e.g., membranes, pumps), and calibration services to minimize downtime.

5. Certifications: Verify compliance with local standards (e.g., UL for North America, CE for Europe) to avoid regulatory issues.

Conclusion

The SF6/N2 Mixed gas recovery cart for power transformers is no longer a “nice-to-have”—it’s a necessity for utilities aiming to balance grid reliability, environmental compliance, and cost efficiency. As electrical grids grow more complex and global carbon regulations tighten, this equipment will play an increasingly vital role in sustainable power infrastructure. By investing in a high-quality recovery cart, utilities can protect their transformers, reduce their environmental footprint, and secure long-term cost savings.
