How to Safely Perform the Step-by-Step SF6 Gas Recovery Process for Electrical Equipment?

SF6 (sulfur hexafluoride) is a critical gas in electrical equipment—valued for its excellent insulation and arc-quenching properties. However, it is one of the most potent greenhouse gases (with a global warming potential, GWP, 23,500 times that of CO₂ over 100 years). To reduce environmental impact and comply with global regulations (e.g., the EU’s F-Gas Regulation, EPA standards), proper SF6 gas recovery is non-negotiable. Below is a detailed, step-by-step breakdown of the SF6 gas recovery process, designed for technicians, facility managers, and industry professionals.

Step 1: Pre-Recovery Preparation – Lay the Groundwork for Safety

Before starting the SF6 recovery process, thorough preparation prevents leaks, equipment damage, and safety risks.

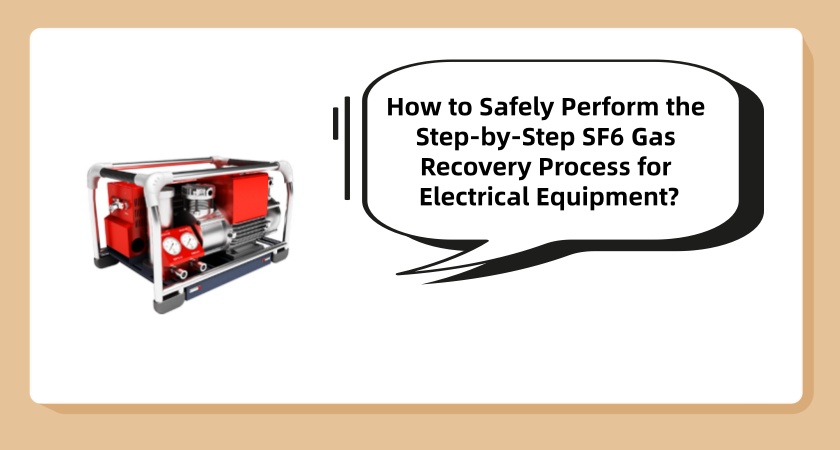

• Inspect Recovery Equipment: Verify that the SF6 recovery unit (a specialized machine with compressors, filters, and storage tanks) is in good working order. Check for loose hoses, damaged gaskets, and functional pressure gauges. Ensure the unit’s vacuum pump can reach the required negative pressure (typically ≤ 1 mbar) to maximize gas capture.

• Safety Gear & Ventilation: Equip the team with personal protective equipment (PPE): chemical-resistant gloves, safety goggles, and a respirator (rated for SF6). Work in a well-ventilated area—if indoors, use exhaust fans to avoid gas buildup (SF6 is heavier than air and can displace oxygen in confined spaces).

• Depressurize the Electrical Equipment: First, isolate the SF6-containing device (e.g., circuit breakers, transformers) from the power grid. Then, slowly release any residual pressure (to ≤ 0.1 MPa) using the equipment’s built-in valves. Never depressurize too quickly—this can cause turbulence and trap gas in internal components.

Step 2: Connect Recovery Unit to the Equipment – Ensure Air-Tight Seals

A leak-proof connection is critical to avoid SF6 emissions during recovery.

• Choose the Right Hoses & Fittings: Use high-pressure, SF6-compatible hoses (made of nitrile or PTFE) with leak-tight quick-connect fittings. Match the fitting size to the equipment’s gas valve (common sizes: 1/4” or 3/8”) to prevent gaps.

• Purge Hoses to Remove Air: Before connecting to the equipment, flush the hoses with a small amount of SF6 (or pull a vacuum on them) to eliminate air. Air contamination can reduce the purity of recovered SF6 and damage the recovery unit’s filters.

• Secure Connections: Attach one end of the hose to the equipment’s gas outlet valve and the other to the recovery unit’s “suction” port. Tighten fittings with a wrench (avoid over-tightening to prevent thread damage) and perform a soap-bubble test: apply soapy water to connections—if bubbles form, re-seal immediately.

Step 3: Core SF6 Recovery – Capture, Compress, and Purify

This phase is the heart of the process, focusing on maximizing gas capture and removing impurities.

• Pull a Vacuum on the Equipment: Start the recovery unit’s vacuum pump to create negative pressure inside the electrical equipment. Run the pump until the pressure drops to ≤ 1 mbar (check the unit’s pressure gauge). This step “pulls” trapped SF6 from hard-to-reach areas (e.g., valve chambers, insulation gaps).

• Capture & Compress SF6: Open the equipment’s gas valve slowly to allow SF6 to flow into the recovery unit. The unit’s compressor will compress the gas (to 20–30 MPa) to reduce its volume, making storage more efficient. Monitor the flow rate—keep it steady (1–2 m³/h) to avoid overloading the compressor.

• Dry & Filter Impurities: As SF6 flows through the recovery unit, it passes through two key filters:

1. Moisture Filter: Uses molecular sieves to remove water vapor (SF6 absorbs moisture easily, which can cause equipment corrosion).

2. Particulate Filter: Traps dust, oil, or metal shavings from the electrical equipment.Test the gas purity midway (using a portable SF6 analyzer)—aim for ≥ 99.8% purity to ensure the gas can be reused.

Step 4: Store Recovered SF6 – Follow Regulatory Standards

Once purified, SF6 must be stored safely to prevent leaks and ensure compliance.

• Use Approved Storage Tanks: Choose seamless steel tanks rated for high pressure (≥ 30 MPa) and labeled with “SF6 – Hazardous Gas” and safety symbols. Tanks must be inspected annually for corrosion or structural damage.

• Record Storage Details: Log the date of recovery, volume of SF6 (in kg), purity level, and tank ID. This documentation is required for regulatory audits (e.g., EPA’s Mandatory Reporting Rule).

• Store in a Secure Area: Keep tanks in a cool, dry, and locked facility—away from heat sources, open flames, or incompatible chemicals (e.g., acids).

Step 5: Post-Recovery Checks – Confirm No Emissions

The final step ensures the process is complete and no SF6 is left behind.

• Recheck the Equipment for Residual Gas: Re-run the vacuum pump on the electrical equipment for 10–15 minutes. If the pressure remains ≤ 1 mbar, no significant SF6 remains. If pressure rises, there may be a leak—use a leak detector (e.g., ultrasonic or infrared) to locate and repair it.

• Clean & Maintain Recovery Equipment: Drain any condensation from the recovery unit’s moisture trap, replace used filters, and wipe down hoses. Proper maintenance extends the unit’s lifespan and ensures accuracy in future recoveries.

• Dispose of Waste (If Needed): If SF6 is too impure to reuse (≤ 99.5%), send it to a certified waste handler for destruction (via thermal or chemical processes that break down SF6 into non-greenhouse gas byproducts). Never release impure SF6 into the atmosphere.

Why This Step-by-Step Process Matters

Following this structured SF6 gas recovery process not only reduces environmental harm but also offers practical benefits: it lowers costs (recovered SF6 can be reused instead of buying new gas), ensures compliance with global regulations, and protects the health of technicians. For businesses in the electrical industry, mastering this process is key to sustainable operations.

By adhering to these steps, you can achieve efficient, safe, and compliant SF6 recovery—turning a regulatory requirement into a responsible business practice.
